Double Source




Catalog : Double Source

Outstanding Features

  • Hot & cold Pool Heat Pump
  • The best energy saving 900% Heating and Cooling Efficiency.
  • Maximum 50°C for Hot pool and Minimum 10°C for cold pool.
  • Special purpose design for Spa and Health Land.
  • Unit includes compressor, evaporator, condenser, fan and electrical control panel, refrigerant is environmental friendly R-417a

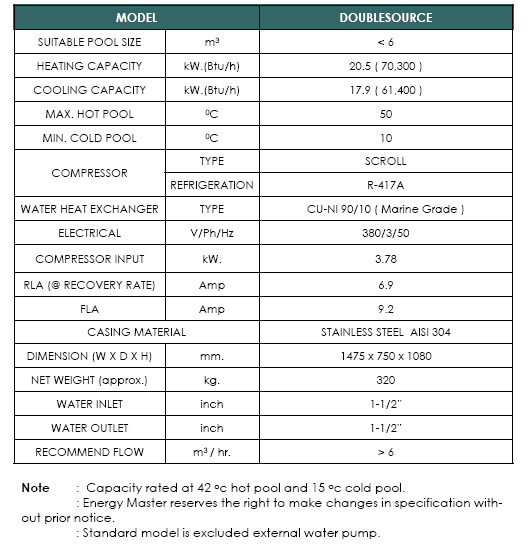

Technical Specification

Conponent of Heat Pump



Cabinet

  • Stainless Steel AISI304 provides excellent durability
    on both indoor and outdoor application
  Compressor
The most powerful heart - Copeland Compressor
  • Long life (at least 10 years) and it is difficult to abrade
  • Over current protection
  • Open-phase protection
  • Over temperature protection
  • Resisting the liquid hammer strongly and run normally
    under bad conditions
  • High voltage & low voltage protection

Variable Speed Drive
  • Variable Speed Drive to control water pump so that heat pump can have maximum energy saving and at the same time can produce instant hot water at 60°C

Temperature Controller

  • An automatic Energy Master microcontroller package
    with completed wiring from the factory
  • Including with equipments status display and full functional protection
  • Adjustable hot water temperature as desires
  • Completed with remote control function. Easily control and monitoring (Optional)





Evaporator

  • Using surface modification of aluminum foil with hydrophilic film
  • Discharging water immediately. It is not likely to produce frost
    and reduce wind age efficiently
  • Inner Grooved Copper Tube increases the area of heat exchange
    and improves the efficiency

Condenser
The brazed plate heat exchanger stainless steel AISI316
  • high heat transfer coefficient
  • small unit size with high heat transfer capacity
  • high resistance to pressure and temperature fluctuations
  • stainless steel connections
